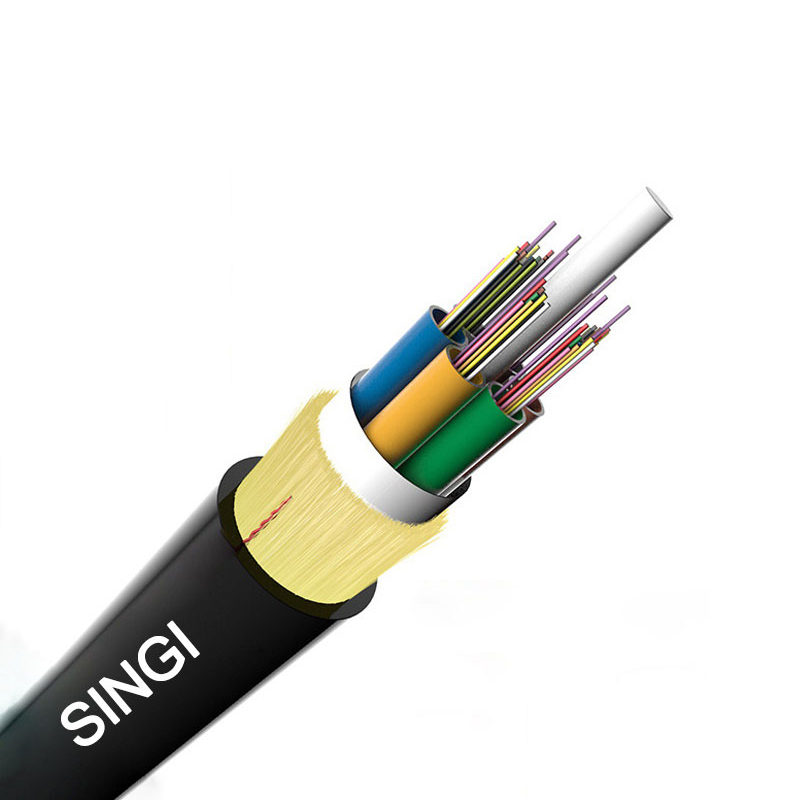

ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even
when live-line installations are required.
Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

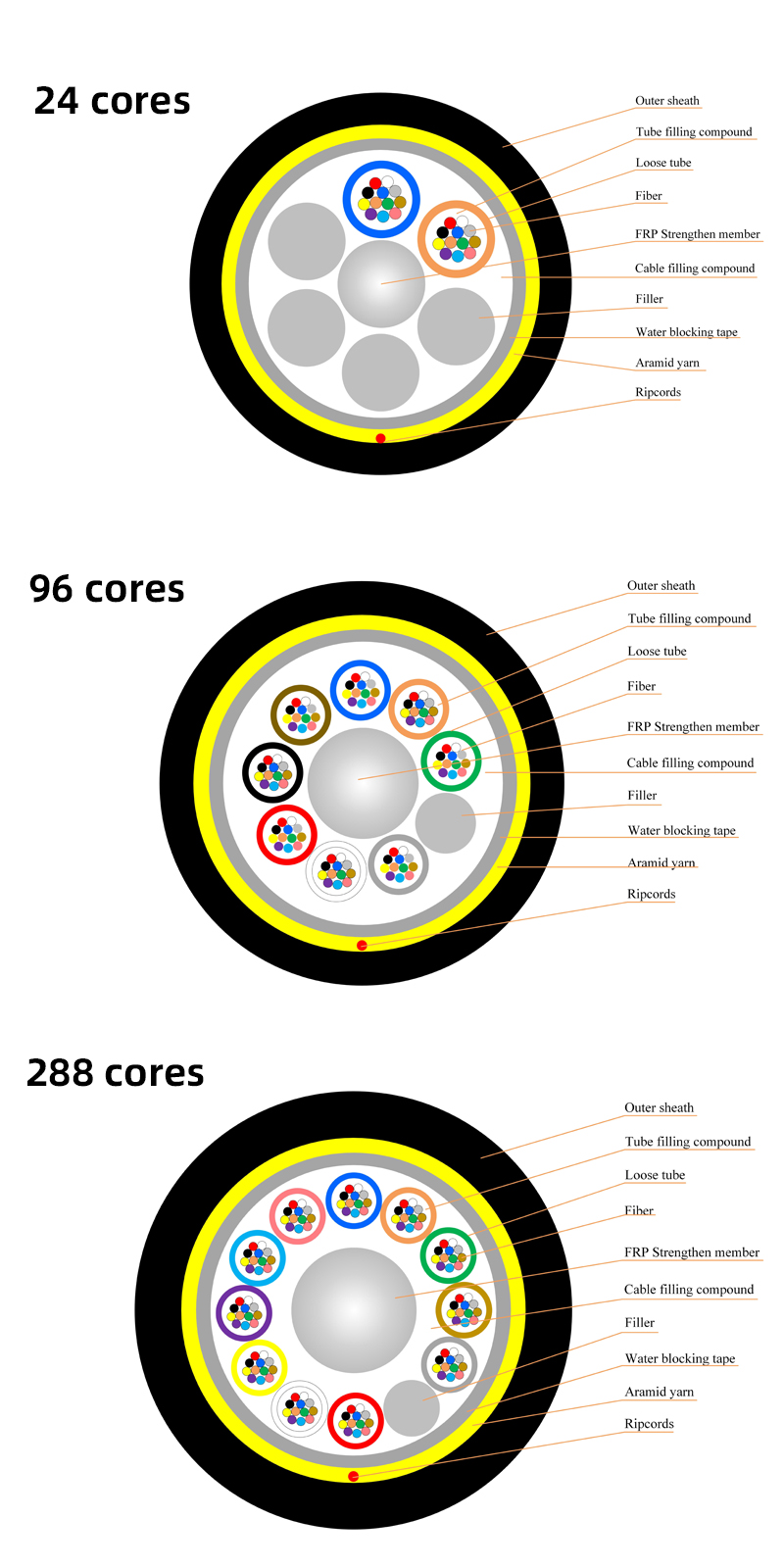

Fiber	2-288 fibers Uni-loose tube gel-filled
Central Strength Member	Fiberglass reinforced plastic (FRP)
Inner Jacket	Black UV and waterproof polyethylene (PE)
Strength Member	Dupon Kevlar Yarn
Outer Jacket	Black UV and waterproof polyethylene (PE).
Applications	Aerial

Technical Specifications

ADSS-SJ

Optical Characteristics:

Fiber Type		G.652	G.655	50/120^m	62.5/125^m
Attenuation (+20X)	850nm			<3.0 dB/km	<3.3 dB/km
	1300nm			<1.0 dB/km	<1.0 dB/km
	1310nm	<0.36 dB/km	<0.40 dB/km
	1550nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300nm			>500 MHz-km	>500 Mhz-kkm
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength		<1260 nm	<1450 nm

Structure and Technical Specifications

Ref. Outer Diameter (mm)	Ref.Weight (kg/km)		Ref Daily Max. Working Tension (KN)	Max.Allowable Working Tension (KN)	Break Stength (KN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (KN/mm2)	Heat Expansion Coefficient (*10-6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Ref Daily Max. Working Tension (KN)	Max.Allowable Working Tension (KN)	Break Stength (KN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (KN/mm2)	Heat Expansion Coefficient (*10-6/K)	A	B	C	D
11	110	120	1.5	4	10	4.6	7.6	1.8	160	100	140	100
11.5	115	125	2.25	6	15	7.6	8.3	1.5	230	150	200	150
12	120	130	3	8	20	10.35	9.45	1.3	300	200	290	200

ADSS-DJ

Optical Characteristics:

Fiber Type		G.652	G.655	50/120^m	62.5/125^m
Attenuation (+20X)	850nm			<3.0 dB/km	<3.3 dB/km
	1300nm			<1.0 dB/km	<1.0 dB/km
	1310nm	<0.36 dB/km	<0.40 dB/km
	1550nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300nm			>500 MHz-km	>500 Mhz-kkm
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength		<1260 nm	<1450 nm

Structure and Technical Specifications

Ref. Outer Diameter (mm)	Ref.Weight (kg/km)		Ref Daily Max. Working Tension (KN)	Max.Allowable Working Tension (KN)	Break Stength (KN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (KN/mm2)	Heat Expansion Coefficient (*10-6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Ref Daily Max. Working Tension (KN)	Max.Allowable Working Tension (KN)	Break Stength (KN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (KN/mm2)	Heat Expansion Coefficient (*10-6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18	0.3	670	460	650	460
15.5	190	204	9	26	60	32.2	19.1	0.1	750	530	750	510
