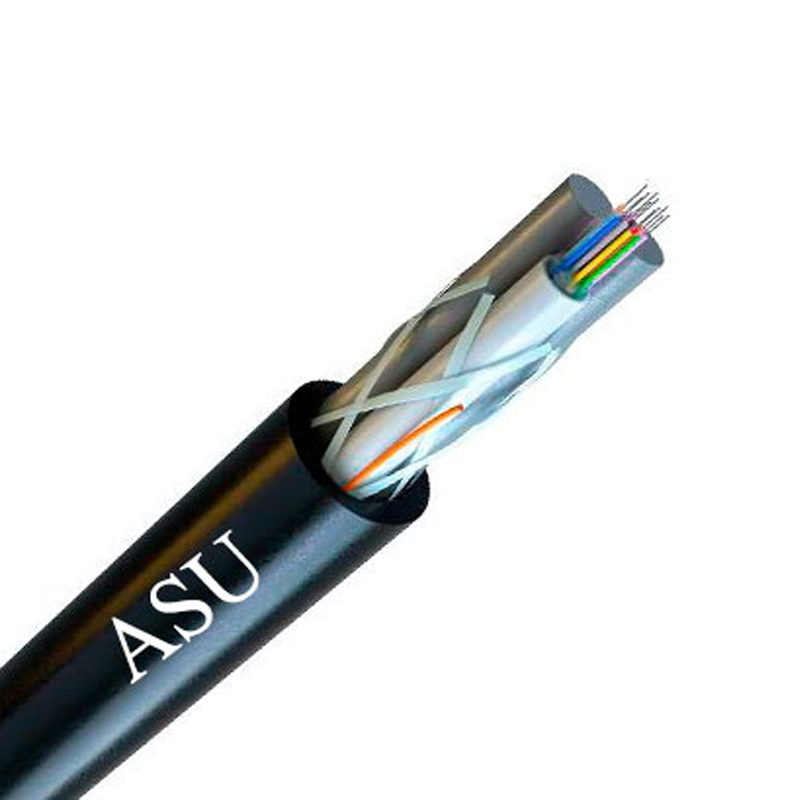

Model	ASU
Fiber Core	2-24 core
Certification	UL ,ROHS,SGS, Anatel, ISO
Fiber type	SM/MM/OM3/OM4
Jacket Material	PE
Available	Pipeline/Overhead/Direct bury/Duct
Fiber brand	Corning, LS, YOFC/Fiberhome etc
Armored or not	FRP unarmoured strength member
Fiber	G652D, G657A

Items		Descriptions

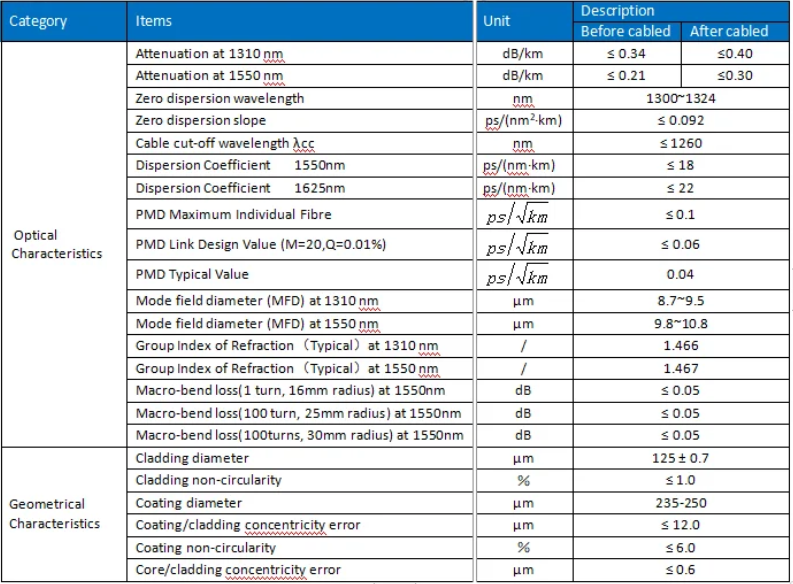

Optical fiber	Category	G652D
Optical fiber	Counts	6	8	12	24	48
Structure	/	1+6	1+6	1+6	1+6	1+6
CSM	Material	FRP
Loose tube	Material	PBT
	Counts	1	2	2	4	4
	Fibers per tube	6	4	6	6	12
Filler	Number	5	4	4	2	2
Water-blocking	Material	Water-blocking yarns and tape
Ripcord	Number	1 pcs
Peripheral strength member	Material	Aramid yarns
Outer sheath	Material	PE
	Color	Black
	Thickness(mm)	Nominal 1.7
Cable diameter(mm)±0.5		9.5	9.5	9.5	9.5	10.5
Weight ±10%KG/KM		68	68	70	70	83
Maximum allowed tensile(MAT)(N)		1500	1500	1500	1900	2700
Span(m)		80	80	80	120	120
Crush(N/100mm)	Short term	1000
Applicable temperature range	Operation	-40℃+70℃
	Installation	-20℃+60℃
	Storage & shipping	-40℃+70℃
Bending Radius	Operation	15 times of cable diameter
Bending Radius	Installation	25 times of cable diameter
