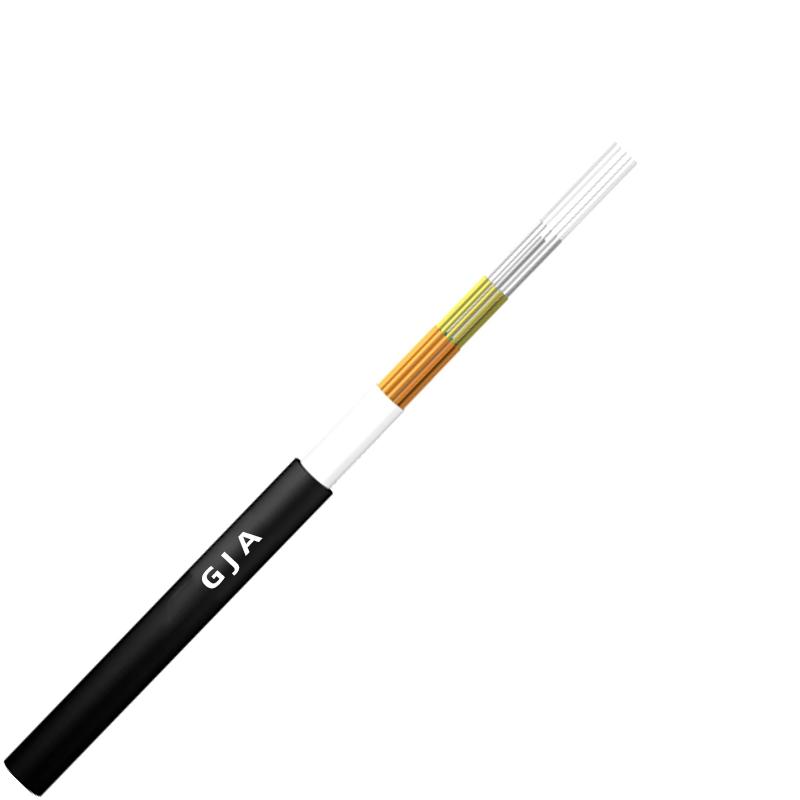

Description

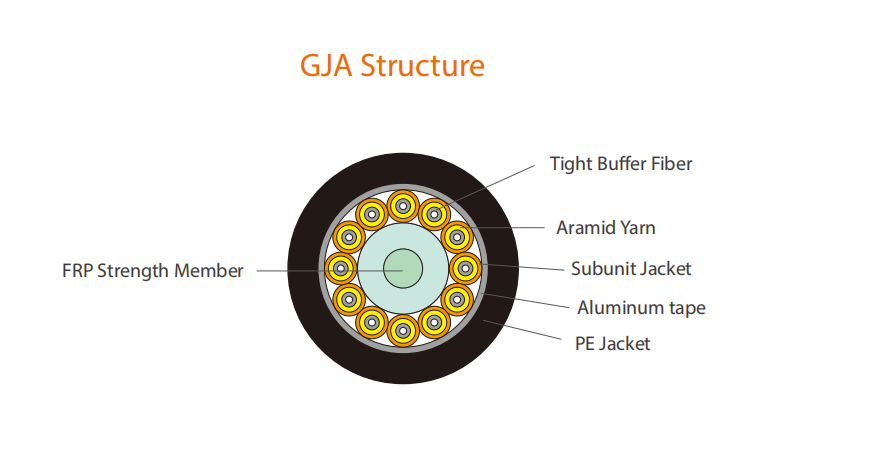

GJA waterproof pigtail cable use simplex cable (Φ900μm tight buffer fiber, around yarn as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the
cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Characteristics
Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
The jacket anti-corrosion, anti-water and anti-ultraviolet radiaton etc.
APL moisture barrier.
Scientific design with serious processing art.
Applications
Indoor any purpose cable distribution.
Interconnect from outdoor to indoor for optical cable distribution equipment.
Standards
Comply with YD/T 1258.4-2005、ICEA-596、GR-409、IEC 60794, etc.
Technical Parameters
| Fiber Count |
Cable Diameter
(mm) |
Cable Weight
(kg/km) |
Tensile Strength
Long/Short term
(N) |
Crush Resistance
Long/Short term
(N/100mm) |
Bending Radius
Static/Dynamic
(mm) |
| 2 |
8.9±0.5 |
58.1 |
220/660 |
300/1000 |
20D/10D |
| 4 |
8.9±0.5 |
58.3 |
220/660 |
300/1000 |
20D/10D |
| 6 |
9.8±0.5 |
73 |
220/660 |
300/1000 |
20D/10D |
| 8 |
10.6±0.5 |
95.7 |
220/660 |
300/1000 |
20D/10D |
| 12 |
13.4±0.5 |
155.2 |
220/660 |
300/1000 |
20D/10D |
