Description:

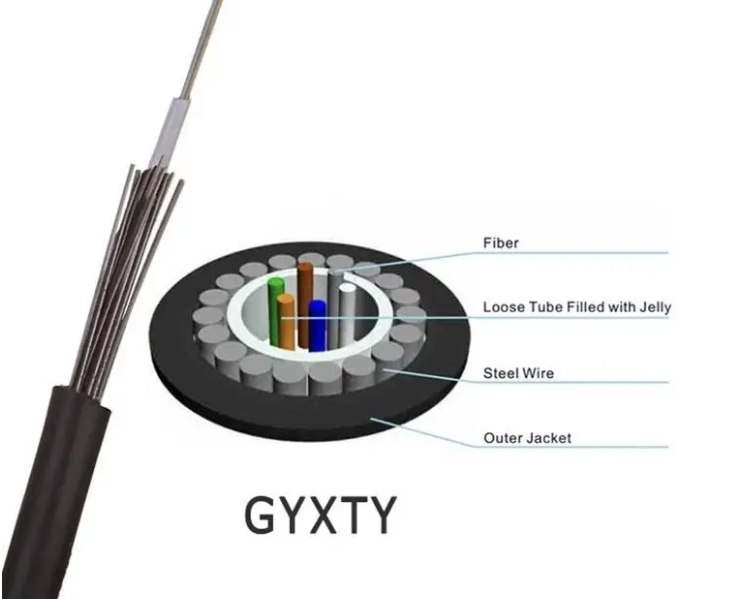

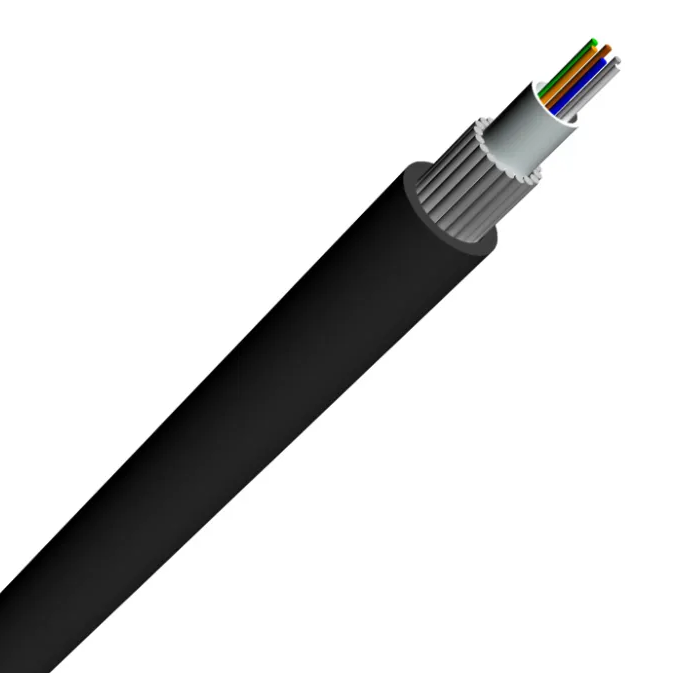

The structure of GYXTY Armored optical cable is to put 250µm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. Loose tubing is added with water blocking material to ensure longitudinal water penetration of the optical cable. After the steel wire is wrapped into a cable, a polyethylene sheath is extruded outside.
Characteristics:
1. Fill the loose tube with special grease (gel) to protect the optical fiber critically; 2. Full-section water blocking
structure.
3. A layer of wrapped steel wire ensures the tensile strength of the optical cable and has good anti-rat performance;
4, PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance;
5. The service life of the product is more than 25 years; 6. Operation temperature: -40 ~ + 70 ºC
Standards:
GYXTY Armored optical cable meets YD / T769-2018 standard
Application: Suitable for long distance communication and interoffice communication
Application: pipeline, overhead
| Cable Type |
Fiber Count |
Tubes |
Nominal Diameter
(mm) |
Cable Weight
(kg/km) |
Allowable Tensile Load
Long/short term
N |
Allowable Crush Resistance
Long/short term (N/100mm) |
Bending Radius
Static/Dyna mic |
| GYXTY-2~12b1.3 |
2-12 |
1 |
7.4 |
70 |
1500/600 |
1000/300 |
10D/20D |
| GYXTY-20~24b1.3 |
13-24 |
1 |
8.6 |
105 |
1500/600 |
1500/600 |
10D/20D |
Note:The table shows G.652D fiber, and the fiber model can also be specified according to customer requirements.
