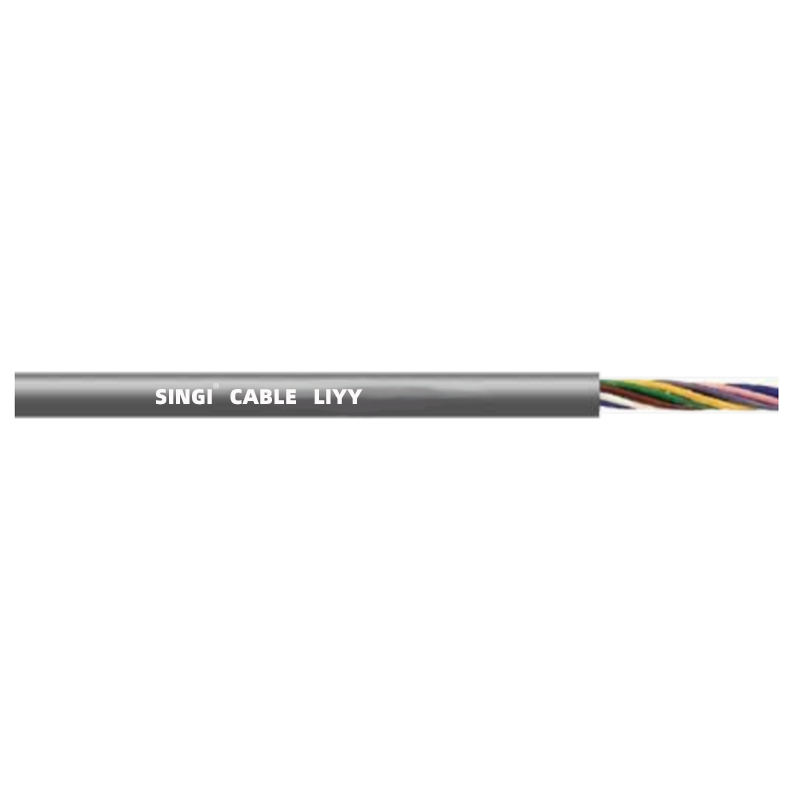

LiYY CE Cable

Product Structure

Conductor

Bare copper stranded wire conforming to DIN VDE 0812

Insulation

PVC, Y12 to DIN VDE 0207 part 4

Color code

Color coded cores according to DIN VDE 47100

Core  Structure

Layered structure

Jacket Material

PVC, YM1 to DIN VDE 0207 Part 5

Jacket Color

Any color

Technical parameters

Operating Voltage

≤0.25mm²：Max350V;
≥0.25mm²：Max500V

Test Voltage

≤0.25mm²：800V;
≥0.25mm²：1200V

Rated Temperature

70℃

Operating Temperature
Fixed Laying：
Mobile Installation：

-15℃~+70℃
-5℃~+70℃

Minimum Bending Radius
Fixed Laying：
Mobile Installation：

5*D
10*D

Flame Retardant

Flame retardant and self-extinguishing in line with IEC60332-1-2

Oil Resistance

Light and shallow engine oil, gear oil, lubricating oil, etc.

Application Scenario

Linkage of control panels and equipment, low-voltage switchboard equipment and communication technology

Certification

CE,RoHS

Type

Specs

Conductor
Construction
(No./mm)

Conductor outer diameter
(mm)

Insulation thickness
(mm)

Insulation Outer Diameter
(mm)

Jacket Thickness
(mm)

Jacket Outer Diameter
(mm)

LiYY

2×0.14

18/0.1

0.49

0.3

1.09

0.6

3.4

3×0.14

18/0.1

0.49

0.3

1.09

0.6

3.5

4×0.14

18/0.1

0.49

0.3

1.09

0.6

3.8

5×0.14

18/0.1

0.49

0.3

1.09

0.6

4.1

2×0.25

15/0.145

0.65

0.30

1.25

0.6

3.7

3×0.25

15/0.145

0.65

0.30

1.25

0.6

3.9

4×0.25

15/0.145

0.65

0.30

1.25

0.6

4.2

5×0.25

15/0.145

0.65

0.30

1.25

0.6

4.6

2×0.34

21/0.145

0.76

0.35

1.46

0.6

4.1

3×0.34

21/0.145

0.76

0.35

1.46

0.6

4.3

4×0.34

21/0.145

0.76

0.35

1.46

0.6

4.72

5×0.34

21/0.145

0.76

0.35

1.46

0.6

5.14

2×0.5

16/0.2

0.92

0.4

1.72

0.6

4.63

3×0.5

16/0.2

0.92

0.4

1.72

0.6

4.90

4×0.5

16/0.2

0.92

0.4

1.72

0.7

5.54

5×0.5

16/0.2

0.92

0.4

1.72

0.7

6.03
