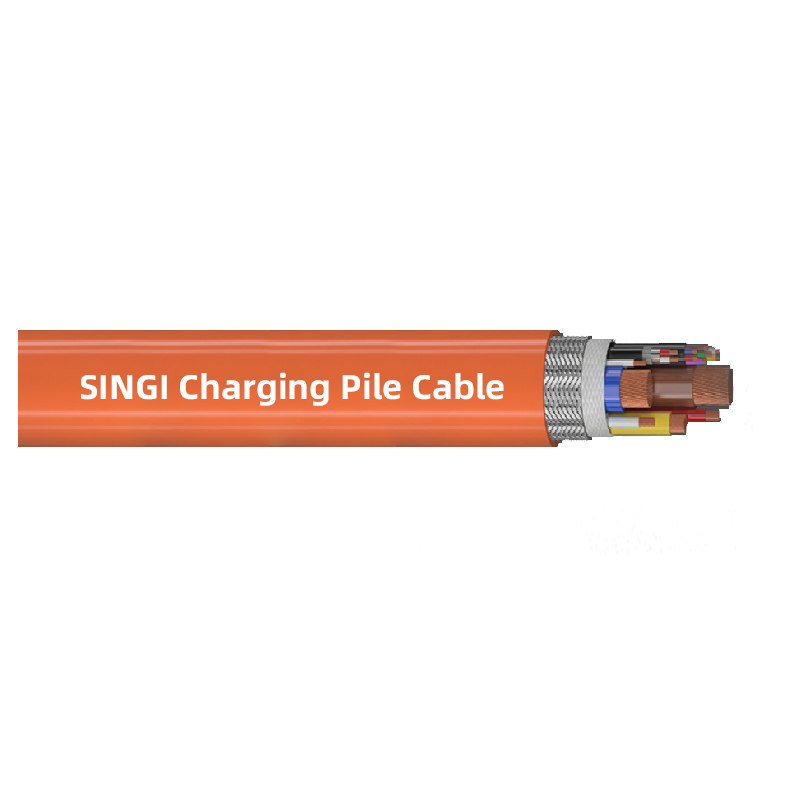

Product Structure |
|
|
Conductor |
Multi-strand stranded oxygen-free copper wire, tinned or untinned, conforming to IEC60228, class 5 |
|
Insulation & Jacket Material |
TPE/TPV/Ethylene Propylene Rubber |
|
Core Structure |
Layered structure |
|
Application Standards |
IEC60228 standard, category 5 |
|
Technical Parameters |
|
|
Rated Voltage |
450V/750V |
|
Test Voltage |
2500V/15min |
|
Ambient Temperature |
-40℃~+90℃ |
|
Bending Radius |
＞6*d |
|
Application Scenario |
It is used to connect the electric vehicle charging device and the charging infrastructure, so as to transmit power to the electric vehicle, and is equipped with a certain number of signal lines, control lines, power auxiliary lines, etc. to ensure accurate control of the entire charging process and safe operation. Charging cables are generally used in charging stations, parking lots, hotels, residential areas, garages and other areas, and portable charging cables can be kept in the car. |
|
Characteristic |
Halogen-free, wear-resistant, tensile-resistant, crack-resistant, oil-resistant, acid-alkali-resistant, water-resistant, highly flexible, bending-resistant, cold-resistant, and UV-resistant |
|
Certification |
CE,RoHS |
|
Type |
Specs |
Conductor Outer Diameter |
Insulation Outer Diameter |
Overall Diameter |
Ampacity |
|
AC |
3*2.5mm2+2*0.75mm2 |
2 |
3.8 |
13.5±0.5mm |
16A |
|
3*2.5mm2+4*0.75mm2 |
2 |
3.8 |
14±0.5mm |
16A |
|
|
5*2.5mm2+2*0.75mm2 |
2 |
3.8 |
17±1.0mm |
16A |
|
|
5*2.5mm2+2*1.5mm2 |
2 |
3.8 |
18±1.0mm |
16A |
|
|
3*6.0mm2+2*0.75mm2 |
3 |
5 |
16.5±1.0mm |
32A |
|
|
DC |
2*16mm2+1*10mm2+2*2.5mm2+2P(2*0.75)mm2 |
5 |
8 |
22.5±1.0mm |
65A |
|
2*16mm2+1*10mm2+2*4.0mm2+2P(2*0.75)mm2 |
5 |
8 |
25.5±1.0mm |
65A |
|
|
2*25mm2+1*16mm2+2*2.5mm2+2P(2*0.75)mm2 |
6.8 |
9.8 |
27.0±1.0mm |
90A |
|
|
2*25mm2+1*16mm2+2*4.0mm2+2P(2*0.75)mm2 |
6.8 |
9.8 |
28.5±1.0mm |
90A |
|
|
2*35mm2+1*16mm2+2*2.5mm2+2P(2*0.75)mm2 |
8 |
11 |
31.0±1.0mm |
125A |
|
|
2*35mm2+1*16mm2+2*4.0mm2+2P(2*0.75)mm2 |
8 |
11 |
32.5±1.0mm |
125A |
|
|
2*50mm2+1*25mm2+2*2.5mm2+2P(2*0.75)mm2 |
10 |
13.5 |
35.0±1.0mm |
160A |
|
|
2*50mm2+1*25mm2+2*4.0mm2+2P(2*0.75)mm2 |
10 |
13.5 |
36.5±1.0mm |
160A |
|
|
2*70mm2+1*25mm2+2*2.5mm2+2P(2*0.75)mm2 |
11.5 |
15 |
38.5±1.0mm |
200A |
|
|
2*70mm2+1*25mm2+2*4.0mm2+2P(2*0.75)mm2 |
11.5 |
15 |
39.5±1.0mm |
200A |
