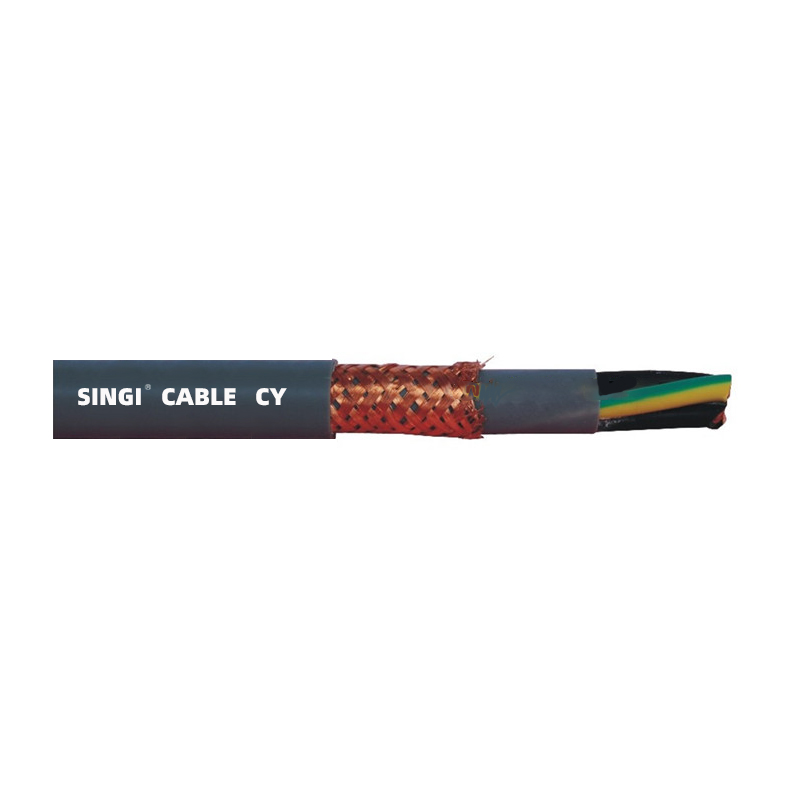

CY CE Cable

Product Structure

Conductor

Stranded bare or tinned copper wires

Insulation

Special PVC mixed material

Jacket Material

Special PVC mixed material

Shielding layer

Tinned copper wire braid

Core  Structure

Layered structure

Application Standards

BS6500，VDE0250，BS6360，IEC60228，IEC60227-7

Technical parameters

Rated Voltage

300V/500V

Test Voltage

2000V

Rated Temperature

70℃

Operating Temperature
Fixed Laying：
Mobile Installation：

-15℃~+70℃
-5℃~+70℃

Minimum Bending Radius
Fixed Laying：
Mobile Installation：

8*D
20*D

Flame Retardant

Flame retardant and self-extinguishing in line with IEC60332-1-2

Application Scenario

Suitable for dry or wet indoor fixed installation in industrial environment, also can be used for mobile installation with continuous reciprocating motion without forced traction such as drag chain

Certification

CE,RoHS

Type

Conductor

Insulation

Shielding

Jacket

Conductor
Construction

Insulation
Material

Thickness
(mm)

Outer Diameter
(mm)

Braid

Material

Thickness
(mm)

Outer Diameter
(mm)

CY 2X0.5

16/0.19

Special PVC mixed material

0.5

1.90

Bare copper or tinned copper

Special PVC mixed material

0.60

5.8

CY 3X0.5

16/0.19

0.5

1.90

0.80

6.5

CY 4X0.5

16/0.19

0.5

1.90

0.80

7.0

CY 5X0.5

16/0.19

0.5

1.90

0.80

7.5

CY 2X0.75

24/0.19

0.6

2.30

0.80

7.0

CY 3X0.75

24/0.19

0.6

2.30

0.80

7.3

CY 4X0.75

24/0.19

0.6

2.30

0.80

7.9

CY 5X0.75

24/0.19

0.6

2.30

0.90

8.8

CY 2X1

32/0.19

0.6

2.50

0.80

7.4

CY 3X1

32/0.19

0.6

2.50

0.80

7.8

CY 4X1

32/0.19

0.6

2.50

0.90

8.6

CY 5X1

32/0.19

0.6

2.50

0.90

9.3

CY 2X1.5

30/0.245

0.73

3.00

0.80

8.4

CY 3X1.5

30/0.245

0.73

3.00

0.90

9.0

CY 4X1.5

30/0.245

0.73

3.00

1.00

10.0

CY 5X1.5

30/0.245

0.73

3.00

1.10

11.1
