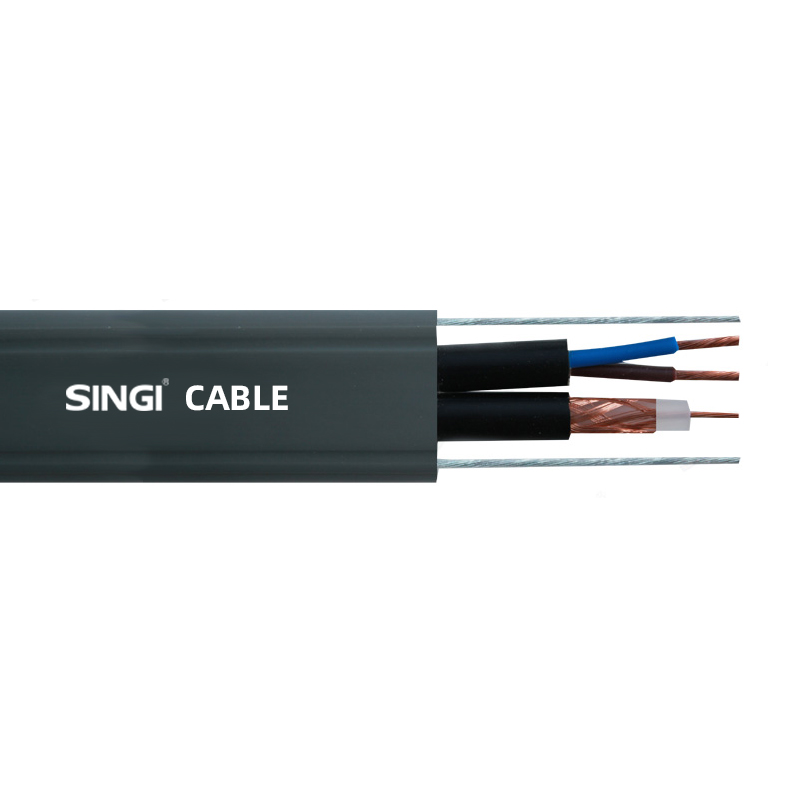

Name: Elevator Traveling Flat Cable
Brand: Singi Cable[Email: singi100@singi.com]
SKU: 00137
Availability: InStock
Rating: 5 (1 reviews)

We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

English

日本語

Deutsch

Français

Español

Русский

Português

Italiano

Polskie

Gaeilge

Eesti keel

български

Suomalainen

Nederlands

čeština

Lietuvių

Română

Svenska

Slovenský

Slovenščina

Ελληνικά

Magyar

Home

Products

UL Cable

CE Cable

JIS Cable

Charging Pile Cables

Other

Fiber Optic Cable

Case

Case Example

News

Download

About Us

Inquiry

English

Home > Other

Description

Product Structure

Conductor: Multiple strands of ultra-fine finely twisted oxygen-free copper wire

Insulation: blend PVC

Color: ≤0.5mm color indication, in line with DIN47100 ≥0.5mm black number white number number

Reinforcement: high-strength galvanized aviation steel wire

Sheath: cold-resistant PVC sheath material

Application Scope

This cable adopts a structural design and has a long service life, maximizing the efficiency of elevator production enterprises. Elevator control cables provide overall electrical control over long suspension lengths while withstanding mechanical stress. Because the elevator cable uses steel wire to carry the cable core, it can be used in long-distance suspension applications. The wires are made of a new type of cold-resistant flexible sheath material, which can remain soft at low temperatures of -15°C. Due to the weight of the cable and the tension it needs to withstand, the cable structure needs to be designed when used for long-length suspension. Strength aviation galvanized steel wire load-bearing, extending service life.

Technical Parameters

Implementation standards: GB5023, IEC60227-6, En50214

Rated temperature: 70℃

Model indication: T: Elevator, V: PVC insulation, V: PVC sheath, B: Flat, P: Shielded structure, G: Steel wire reinforcement, TV: Video transmission line

When the elevator cables are arranged in a straight line:

1. Free use length is greater than 35M;

2. The running speed is greater than 1.6M/S; consideration should be given to adding load-bearing components to the cable. The load-bearing components are generally galvanized steel wire ropes or fiber ropes such as aramid yarn.

When the elevator cable is twisted in a plum blossom type arrangement:

1. The free hanging length is greater than 80M;

2. The operating speed is 4M/S-10M/S; consideration should be given to adding load-bearing components to the cable, which are generally galvanized soft steel wire ropes.

Model Number	*No. of CoresSection（mm²）**	Height	Thicknesses	Product Shape
Model Number	*No. of CoresSection（mm²）**	mm	mm	Product Shape
TVVB	2*0.75	8	4.6	One-Piece Arrangement
TVVB	3*0.75	10.4	4.6	One-Piece Arrangement
TVVB	4*0.75	13.7	4.6	One-Piece Arrangement
TVVB	5*0.75	17.1	4.6	One-Piece Arrangement
TVVB	6*0.75	19.4	4.6	One-Piece Arrangement
TVVB	7*0.75	21.8	4.6	One-Piece Arrangement
TVVB	8*0.75	24.1	4.6	One-Piece Arrangement
TVVB	9*0.75	26.5	4.6	One-Piece Arrangement
TVVB	10*0.75	28.8	4.6	One-Piece Arrangement
TVVB	24*0.75	64.7	4.6	One-Piece Arrangement
TVVB	24*0.75	31.9	9	Plum Arrangement
TVVB	30*0.75	40.7	8.3	Plum Arrangement
TVVB	36*0.75	44.4	9	Plum Arrangement
TVVB	40*0.75	51.8	8.3	Plum Arrangement
TVVB	42*0.75	50.6	9	Plum Arrangement
TVVB	48*0.75	56.7	9	Plum Arrangement
TVVB	54*0.75	62.9	9	Plum Arrangement
TVVB	60*0.75	69	9	Plum Arrangement
TVVB	66*0.75	75.2	9	Plum Arrangement
TVVB(G)	2*0.75	13.5	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	3*0.75	15.9	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	4*0.75	19.2	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	5*0.75	22.6	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	6*0.75	23.9	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	7*0.75	27.3	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	8*0.75	29.6	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	9*0.75	32	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	10*0.75	34.3	4.6	One-Piece Arrangement (With Steel Wire)
TVVB(G)	24*0.75	70.9	4.6	Plum Arrangement (With Steel Wire)
TVVB(G)	24*0.75	40.9	9	Plum Arrangement (With Steel Wire)
TVVB(G)	30*0.75	48.9	8.3	Plum Arrangement (With Steel Wire)
TVVB(G)	36*0.75	52.6	9	Plum Arrangement (With Steel Wire)
TVVB(G)	40*0.75	60	8.3	Plum Arrangement (With Steel Wire)
TVVB(G)	42*0.75	59.8	9	Plum Arrangement (With Steel Wire)
TVVB(G)	48*0.75	65.9	9	Plum Arrangement (With Steel Wire)
TVVB(G)	54*0.75	72.1	9	Plum Arrangement (With Steel Wire)
TVVB(G)	60*0.75	78.2	9	Plum Arrangement (With Steel Wire)
TVVB(G)	66*0.75	84.4	9	Plum Arrangement (With Steel Wire)
