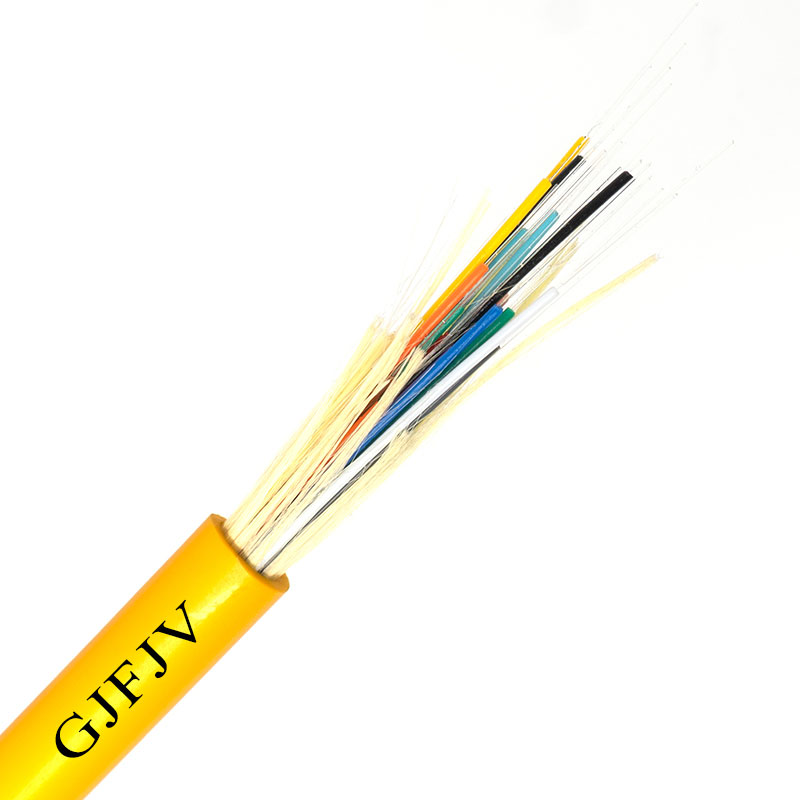

Distribution Cable GJFJV≤24F
Product Description

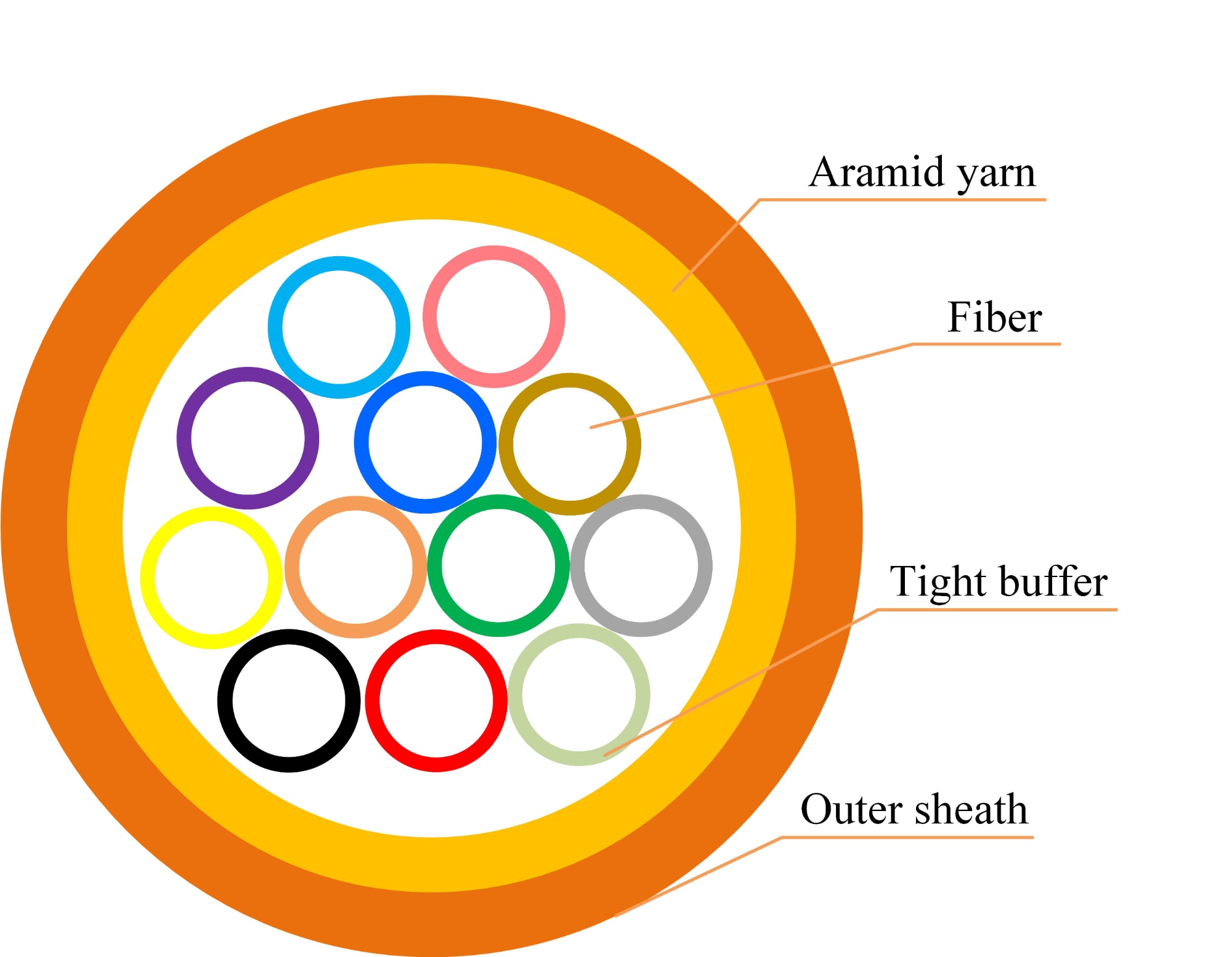

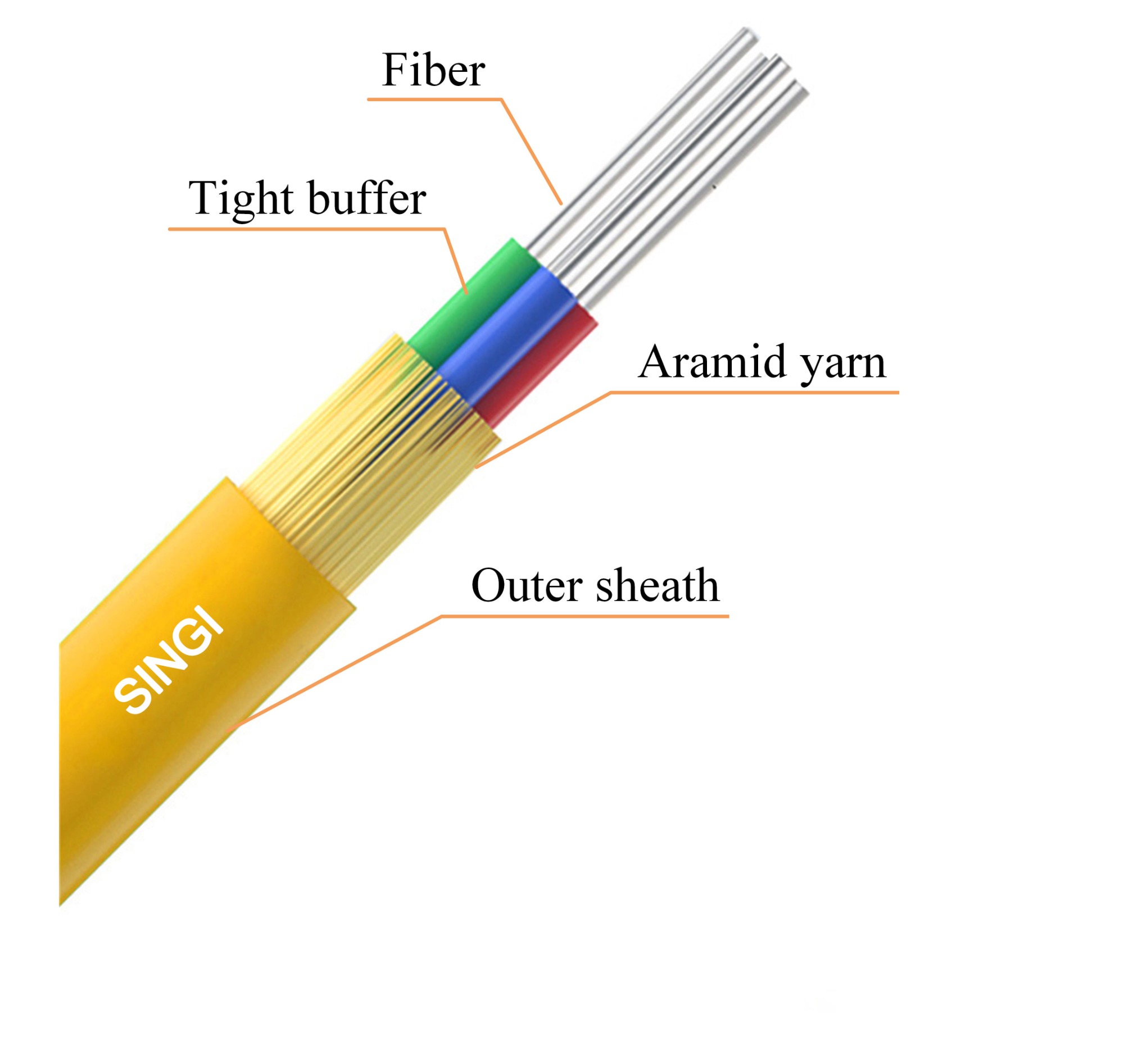

GJFJV multi-purpose distribution cable use several Φ900μm flame-retardant tight buffer fiber as optical communication
medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is
completed with a PVC or LSZH (Low smoke, Zero halogen, flame-retardant) jacket.
Characteristics
Tight buffer fiber ease of stripping.
Aramid yarn as strength member make cable have excellent tensile strength.
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Applications
Multi optical fiber jumper.
Indoor any purpose cable distribution.
Standards
Comply with Standard YD/T 1258.2-2005、ICEA-596、GR-409、IEC 60794-2-20/21, etc; and meet the requirements of UL approval for OFNP.
Technical Parameters
| Cable |
Fiber Count |
Cable Diameter
(mm) |
Cable Weight
(kg/km) |
Tensile Strength
Long/Short term
(N) |
Crush Resistance
Long/Short term
(N/100mm) |
Bending Radius
Static/Dynamic
(mm) |
Jacket
Material |
| GJFJV |
2 |
4.1±0.25 |
12.4 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
4 |
4.8±0.25 |
16.2 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
6 |
5.1±0.25 |
20 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
8 |
5.6±0.25 |
26 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
10 |
5.8±0.25 |
28 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
12 |
6.2±0.25 |
31.5 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
24 |
8.0±0.25 |
42.5 |
200/660 |
300/1000 |
20D/10D |
PVC |
| GJFJV |
2 |
3.2±0.25 |
10 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
4 |
4.8±0.25 |
18 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
6 |
5.1±0.25 |
22.5 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
8 |
5.6±0.25 |
28 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
10 |
5.8±0.25 |
32.5 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
12 |
6.2±0.25 |
38 |
200/660 |
300/1000 |
20D/10D |
LSZH |
| GJFJV |
24 |
8.0±0.25 |
58.5 |
200/660 |
300/1000 |
20D/10D |
LSZH |
Mulit Purpose Distribution Cable MPC≥24FProduct Description
MPC multi-purpose distribution cable use 6-fiber subunits (Φ900μm tight buffer fiber, aramid yarn as strength member). A fiber
reinforced plastic (FRP) locates in the center of core as a non-metallice strength member. The subunits are stranded
around the cable core. The cable completed with a LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Characteristics
Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
Compact structure with high fiber capacity and density.
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
All dielectric structure protect it from electromagnetic influence.
Scientific design with serious processing art.
ApplicationsIndoor any purpose cable distribution.
Backbone distribution cable in a building.
Standards
Comply with Standard YD/T 1258.2-2005、ICEA-596、GR-409、IEC 60794-2-20/21、 IEC 332-1 and IEC332-3C.
Technical Parameters
| Cable |
Fiber Count |
Cable Diameter
(mm) |
Cable Weight
(kg/km) |
Tensile Strength
Long/Short term
(N) |
Crush Resistance
Long/Short term
(N/100mm) |
Bending Radius
Static/Dynamic
(mm) |
| MPC |
24 |
10.4±0.5 |
96 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
30 |
12.4±0.5 |
149 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
36 |
13.5±0.5 |
185 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
48 |
15.7±0.5 |
265 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
60 |
18.0±0.5 |
350 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
72 |
20.5±0.5 |
440 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
96 |
20.5±0.5 |
448 |
400/1320 |
300/1000 |
20D/10D |
| MPC |
108 |
20.5±0.5 |
448 |
400/1320 |
300/1000 |
20D/10D |
