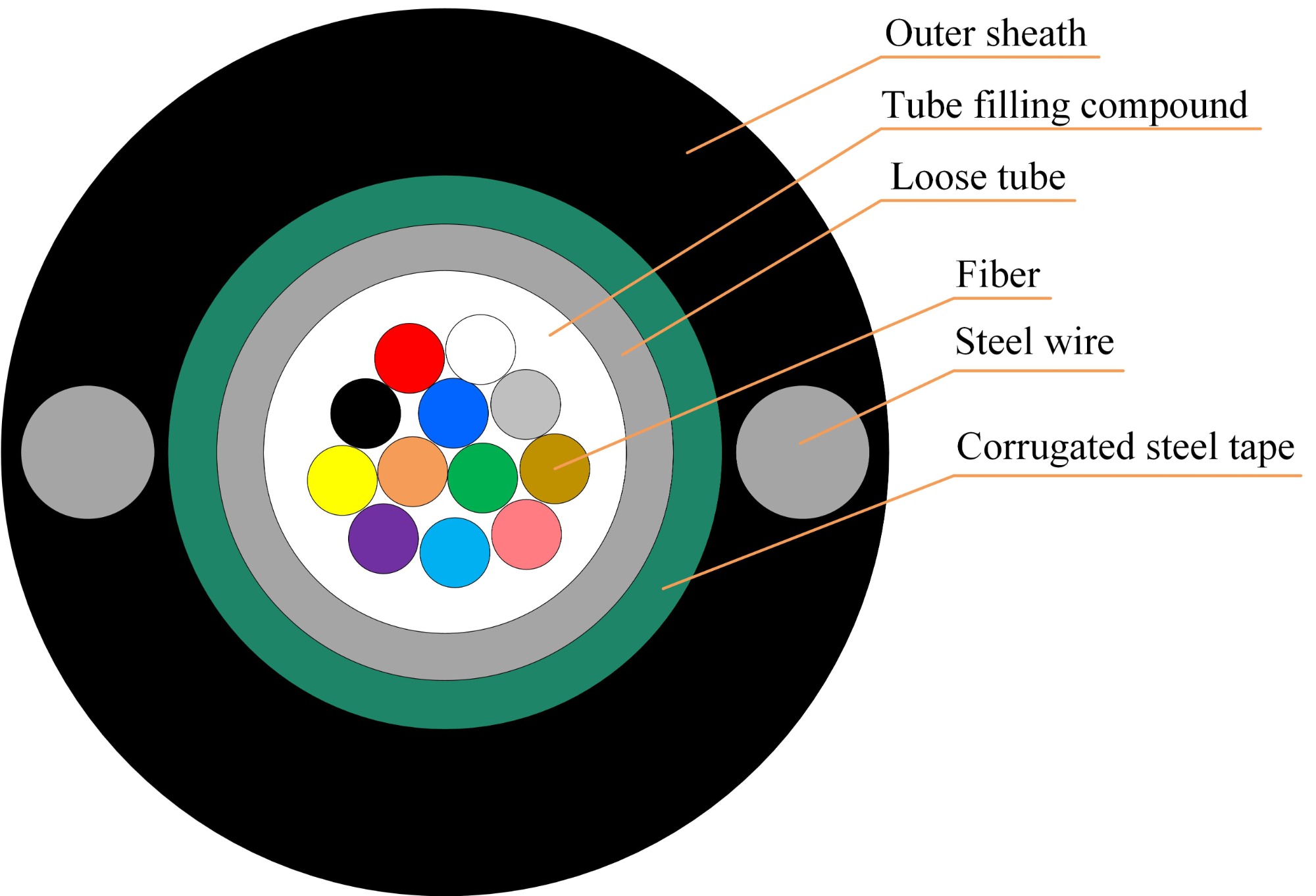

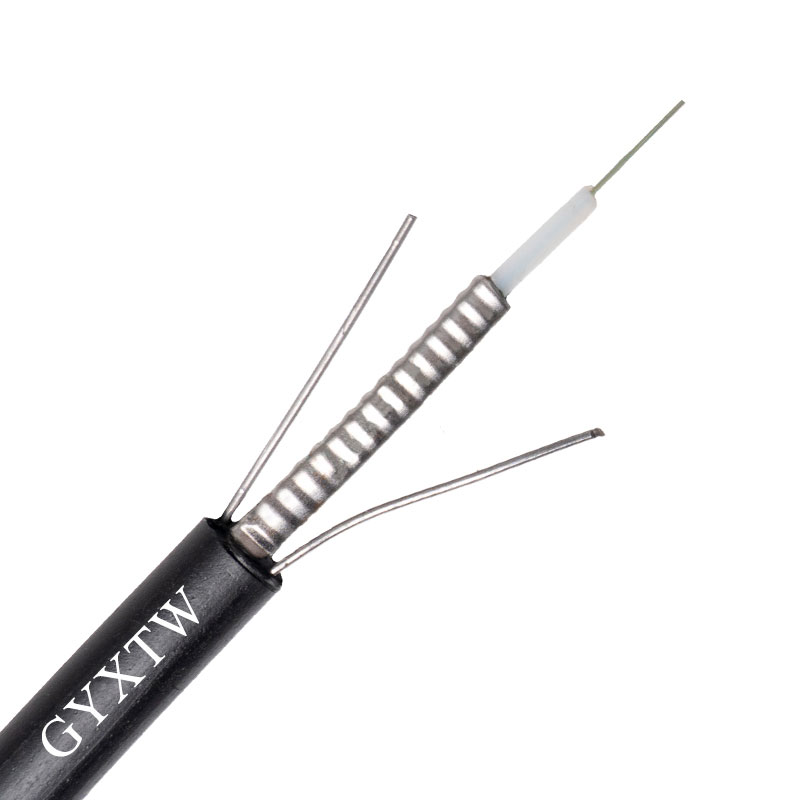

Product Construction
Fiber: 2-24 fibers ; Uni-loose tube gel-filled
Armor: Corrugated steel tape
Strength Member: Embedded steel wire
OuterJacket: Black UV-and moisture-resistant polyethylene (PE).
Features
Uni-tube gel-filled construction for superior fiber protection.
CST armorto protect cable from rodentattack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and moisture-resistantdesign
Optical Characteristics
| Fiber Type |
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation
(+20℃） |
850nm |
|
|
≤3.0dB/km |
≤3.3dB/km |
| 1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
| 1310nm |
≤0.36dB/km |
≤0.40dB/km |
|
|
| 1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
| Bandwidth |
850nm |
|
|
≥500MHZ·km |
≥200MHZ·km |
| 1300nm |
|
|
≥500MHZ·km |
≥500MHZ·km |
| Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
Cable Cut-off
Wavelength |
|
≤1260nm |
≤1450nm |
|
|
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter
(mm) |
Nominal Weight
(kg/km) |
Allowable Tensile Load
Long/short term
N |
Allowable Crush Resistance
Long/short term
(N/100mm) |
| 2-12 |
7.8 |
60 |
1500/600 |
1500/600 |
| 14-24 |
8.5 |
85 |
1500/600 |
1500/600 |
Note: This datasheet can only be a referencec,but not a supplement to the contract.Please contact our sales people for more datailed information.
