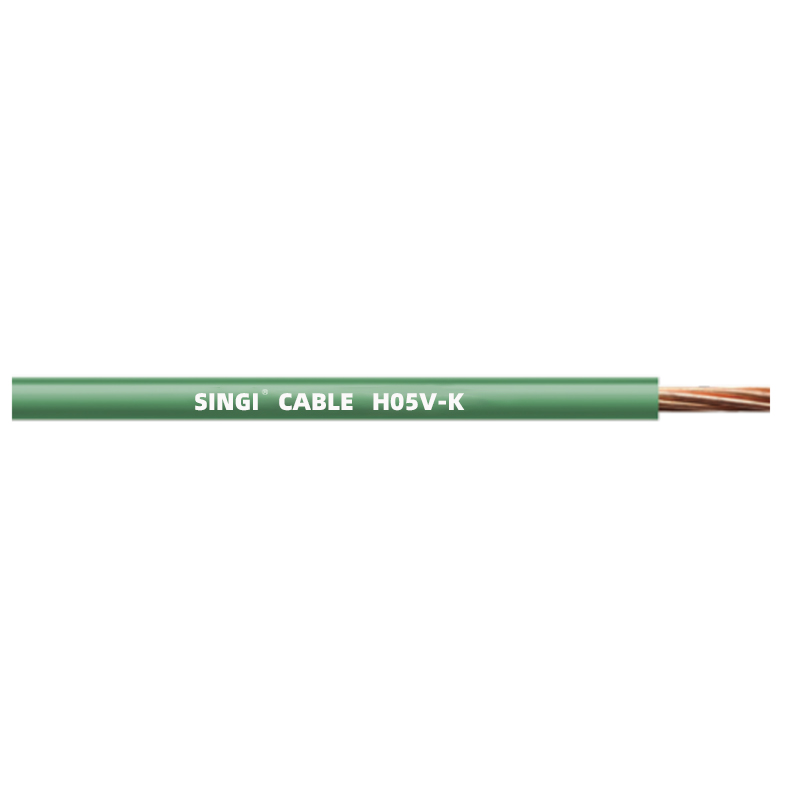

H05V-K CE Cable

Product Structure

Conductor

Stranded bare or tinned copper wires, conforming to IEC60228 category 5

Insulation

PVC/TI1 conforming to DIN VDE 0281 Part 1+HD21.1

Color Standard

Conforms to HD402 standard

Core  Structure

Layered structure

Application Standards

EN50525

Technical parameters

Rated Voltage

300V/500V

Test Voltage

2000V

Rated Temperature

70℃

Operating Temperature
Fixed Laying：
Mobile Installation：

-15℃~+70℃
-5℃~+70℃

Minimum Bending Radius
Fixed Laying：
Mobile Installation：

12.5*D
12.5*D

Flame Retardant

Flame retardant and self-extinguishing in line with IEC60332-1-2

Insulation Resistance

Comply with REN50525 requirements

Application Scenario

It is used for flexible connections inside electrical appliances, instruments and electrical installations. Connections between instruments, installations, switchboards, power distributors (boards) and telecommunications equipment, also suitable for dry protection systems (earth wires) and warning lights.

Characteristic

Flexible bending single core wire

Certification

CE,RoHS

TYPE

CONDUCTOR

INSULATION

MAX.COND.  RESISTANCE
（Ω/Km,20℃）

STANDARD  PUT-UP  (M/ROLL)

Wire type(mm2)

CONSTRUCTION
(No./mm)

Outer Diameter
(mm)

THICKNESS
(mm)

Outer Diameter
(mm)

H05V-K   H05V2-K

0.5

16/0.2

0.95

0.6

2.2

39

500

0.75

24/0.2

1.25

2.4

26

1.0

32/0.2

1.35

2.6

19.5
