Product Structure |
|
Conductor |
Refer to JIS C3102\JISC 3152 |
Insulation |
Environmental PVC,refer to JIS C3316-2000 Part 1 |
Core Structure |
Layered structure |
Application Standards |
Refer to JIS C3316-2000 |
Technical parameters |
|
Rated Voltage |
600V |
Test Voltage |
2000V |
Rated Temperature |
60℃ |
Flame Retardant |
Combustion passed JIS_C_3005-2000 |
Operating Temperature |
|
Minimum Bending Radius |
|
Application Scenario |
Mobile connections for mobile household appliances, small power tools, instrumentation, telecommunications equipment, automation, and power and home lighting. It can also be used as an internal installation of machinery and equipment. |
Certification |
RoHS |
TYPE |
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE |
|||
Wire type(mm2) |
CONSTRUCTION |
Outer Diameter |
THICKNESS |
Outer Diameter |
||

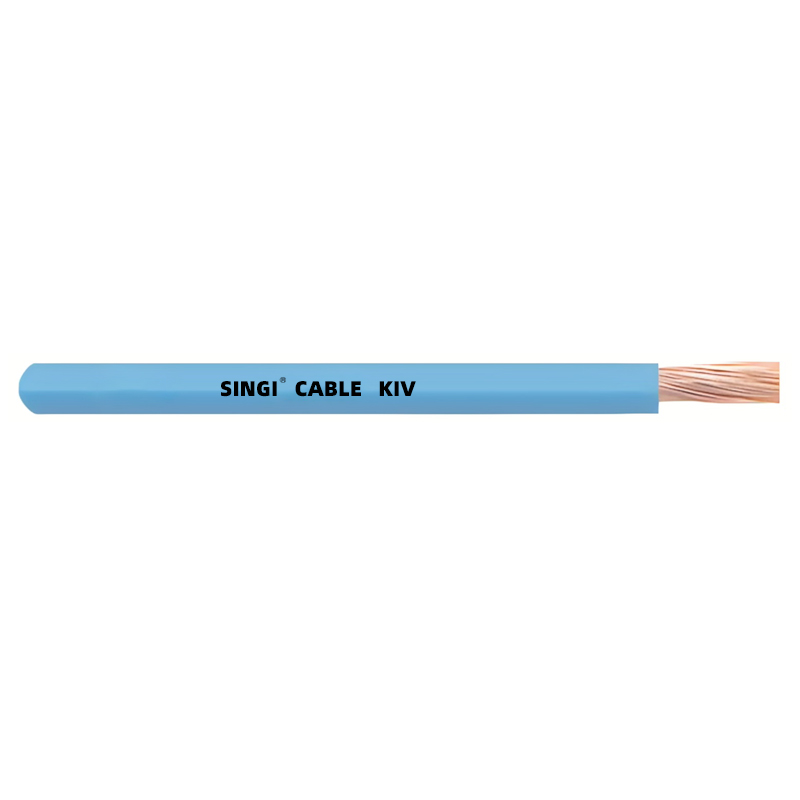

KIV |
0.75 |
30/0.18 |
1.1 |
0.8 |
2.7 |
24.40 |
1.25 |
50/0.18 |
1.5 |
0.8 |
3.1 |
14.70 |
|
2 |
37/0.26 |
1.8 |
0.8 |
3.4 |
9.5 |
|
3.5 |
30/0.18 |
2.5 |
0.8 |
4.1 |
5.09 |
|
5.5 |
50/0.18 |
3.1 |
1.0 |
5.1 |
3.27 |
|
8 |
37/0.26 |
3.7 |
1.2 |
6.1 |
2.32 |
|
14 |
30/0.18 |
4.9 |
1.4 |
7.7 |
1.32 |
