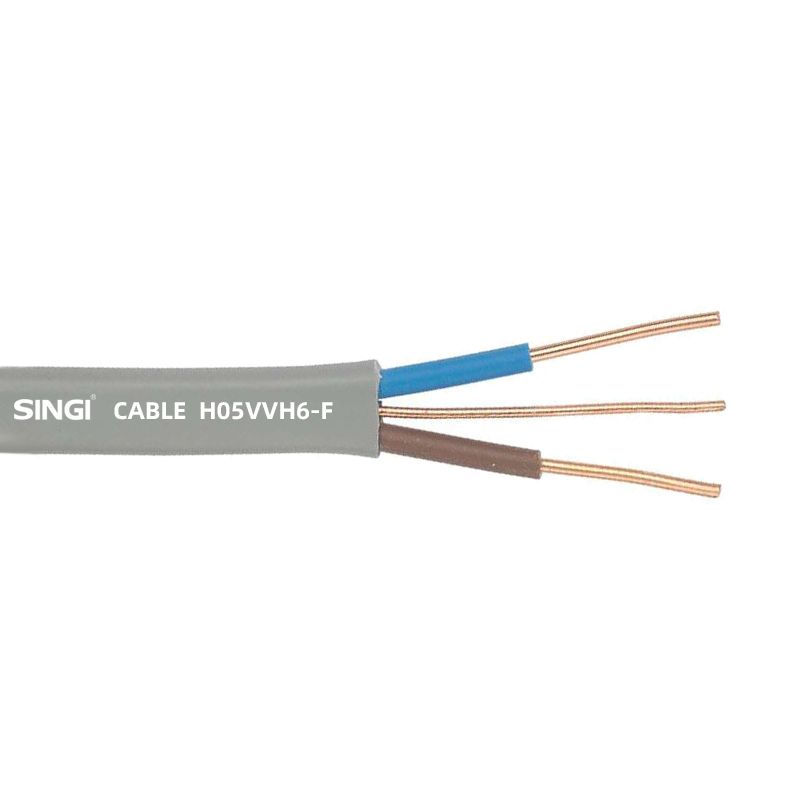

H05VVH6-F CE Twin and Earth Flat Cable

Product Structure

Conductor

Category 1 and Category 2 annealed copper conductors shall comply with BS EN60228 annealed copper

Insulation

PVC type Tl1 to BS EN

Jacket

PVC type 6 to BS 7655

Application Standards

BS6004

Technical Parameters

Rated Voltage

300/500V or 450/750V

Rated Temperature

15°C ~ +70°C

Application Scenarios

Suitable for power transmission and lighting

Certification

CE

Item

Conductor Size
（mm²）

Conductor Cons truction
(No./mm)

No of cores

CPC Size
(mm²)

CPC Cons truction
(No./mm)

Outside diameter
（mm）

6241Y

1

1/1.13

1

1

1/1.13

4.15*5.4

1.5

1/1.38

1

1

1/1.13

4.65*5.8

6242Y

1

1/1.13

2

1

1/1.13

4.5*8.2

1.5

1/1.38

2

1

1/1.13

4.7*8.6

2.5

1/1.77

2

1.5

1/1.38

5.3*9.9

4

7/0.85

2

1.5

1/1.38

6.1*11.4

6

7/1.04

2

2.5

1/1.77

6.8*13.1

10

7/1.35

2

4

7/0.85

8.4*16.8

16

7/1.7

2

6

7/1.04

9.6*19.5

6243Y

1

1/1.13

3

1

1/1.13

4.5*10.7

1.5

1/1.38

3

1

1/1.13

4.7*11.7

2.5

1/1.77

3

1.5

1/1.38

5.3*12.8

4

7/0.85

3

1.5

1/1.38

6.4*16.0

6

7/1.04

3

2.5

1/1.77

7.0*18.1

10

7/1.35

3

4

7/0.85

8.3*22.5

16

7/1.7

3

6

7/1.04

9.5*26.3
