Name |

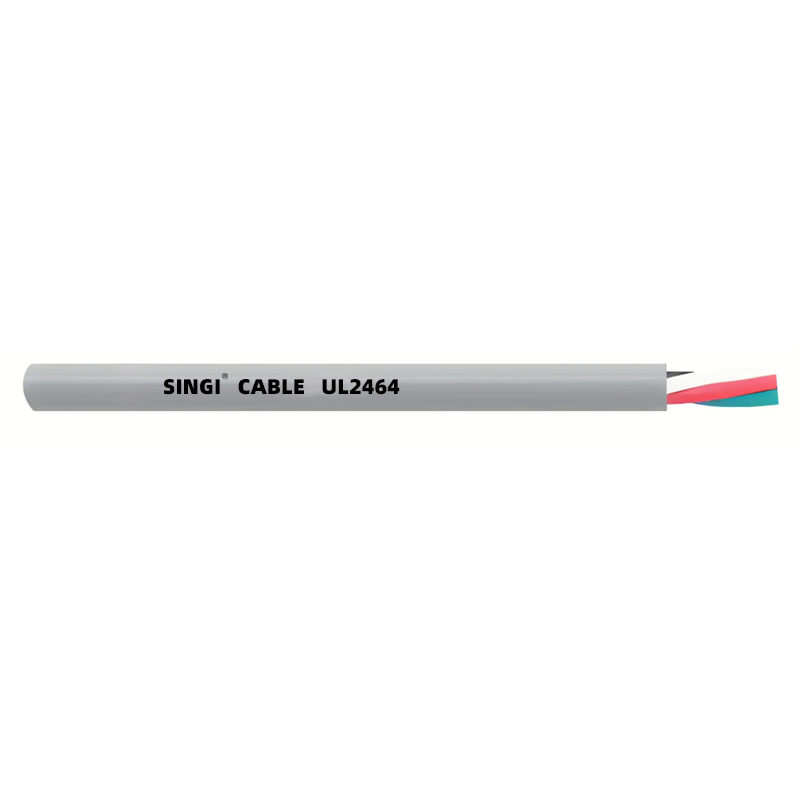

UL2464 Electronic Wire Electrical Installation Wire |
|
Product Structure |
|
|
Conductor |
Single or stranded bare or tinned copper wire conforming to UL758 & UL1581 and CSA C22.2 No. 210.02 standards |
|
Insulation |
Environmental PVC insulation, passed VW-1 flame retardant test |
|
Core structure |
Layered structure |
|
Shielding layer |
Aluminum-plastic composite tape + bare copper or tin-plated copper braid + drain wire of same size |
|
Jacket material |
Mixed 80 degree heat resistant flame retardant PVC jacket, passed VW-1 flame retardant test |
|
Jacket color |
Any color |
|
Application Standards |
UL758,UL1581及CSA C22.2 No.210.2 |
|
Technical parameters |
|
|
Rated voltage |
300V |
|
Rated temperature |
80℃ |
|
Flammability test |
Passed UL VW-1, CSA FT1 flame retardant tests |
|
Application scenarios |
Suitable for internal and external wiring of electronic equipment (such as office computer systems, recorders, X-ray machines, etc.). As measurement, detection and control cables, it is suitable for applications in machine tool manufacturing, complete equipment installation projects, power plants, heating and air conditioning systems, refrigeration equipment, office automation equipment and data processing systems where shielding is required. |
|
Characteristics |
Good heat resistance, flame retardancy and cold resistance |
|
Able to withstand certain mechanical external forces and abrasion resistance |
|
|
Bright core colors for easy and simple installation |
|
|
Certification |
RoHS |
|
CONDUCTOR |
INSULATION |
JACKET |
MAX.COND. Resistance |
||||||
|
AWG |
Structure |
Outer Diameter(mm) |
Core number |
Insulation Thickness |
Outer Diameter |
Jacket Thickness |
Outer Diameter |
||
|
26 |
7/0.16 |
0.48 |
2 |
0.23 |
1 |
0.76 |
3.5 |
150 |
|
|
24 |
7/0.20 11/0.16 |
0.61 |
2 |
0.23 |
1.1 |
0.76 |
3.7 |
94.2 |
|
|
22 |
17/0.16 |
0.76 |
2 |
0.23 |
1.3 |
0.76 |
4.1 |
59.4 |
|
|
20 |
21/0.178 26/0.16 |
0.94 |
2 |
0.23 |
1.5 |
0.76 |
4.5 |
36.7 |
|
