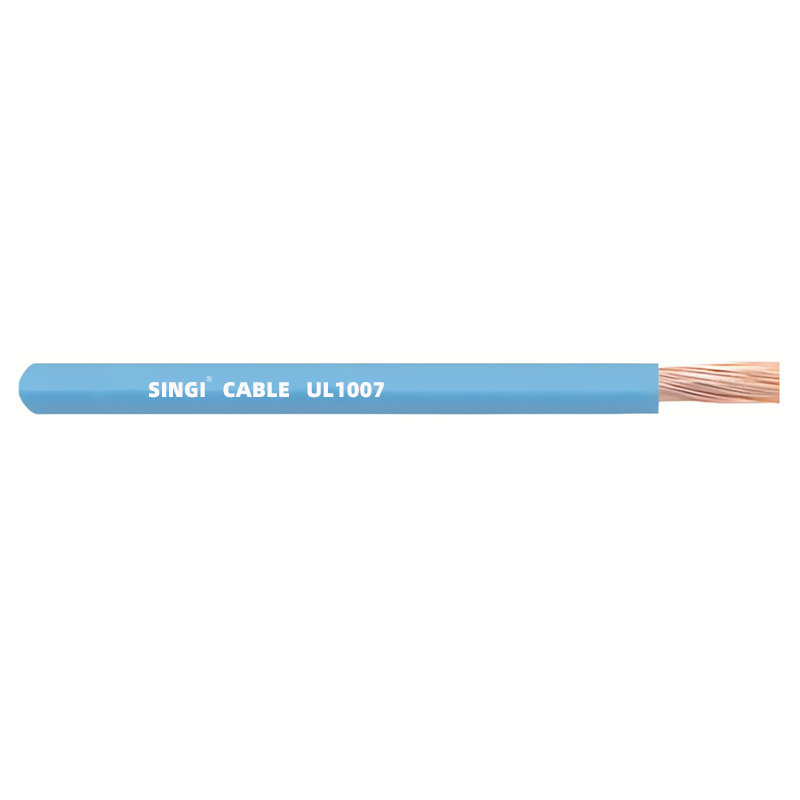

UL1007 Cable

Product Structure

Conductor

Single or stranded bare copper or tinned copper wires comply with UL758&UL1581 and CSA C22.2 NO.210.05 standards

Insulation

Environmental PVC insulation, passed VW-1 flame retardant test

Core  Structure

Layered structure

Application Standards

UL758,UL1581 ,CSA C22.2 No.210.2

Technical parameters

Rated Voltage

300V

Rated Temperature

80℃

Flammability test

Passed UL VW-1, CSA FT1 flame retardant tests

Application scenarios

Used for general electronic and electrical equipment internal connection lines

Certification

RoHS

UL TYPE

AWG

Construction(No./mm)

Conductor Outer Diameter(mm)

Insulation Thickness(mm)

Wire O.D(mm)

Max Cond. Resistance（Ω/km ,20ºC）

FT/ROLL

METER/ROLL

UL1007

28

7/0.127

0.38

0.38

1.20

239

2000

610

26

7/0.16

0.48

1.30

150

24

11/0.16

0.61

1.40

94.2

22

17/0.16

0.76

1.60

59.4

20

21/0.178

0.94

1.80

36.7

18

16/0.254

1.17

2.00

23.2

16

26/0.254

1.49

2.35

14.6
