Product Structure |
|
|
Conductor |
Single or stranded bare copper or tinned copper wires comply with UL758&UL1581 and CSA C22.2 NO.210.05 standards |
|
Insulation |
Mixed 105 degree heat resistant flame retardant PVC jacket, passed VW-1 flame retardant test |
|
Core Structure |
Layered structure |
|
Application Standards |
UL758,UL1581 ,CSA C22.2 No.210.05 |
|
Technical parameters |
|
|
Rated Voltage |
1000V |
|
Rated Temperature |
105℃ |
|
Flammability test |
Passed UL VW-1, CSA FT1 flame retardant tests |
|
Application scenarios |
Suitable for electronic and electrical equipment internal connection lines |
|
Certification |
RoHS |
|
UL TYPE |
Gauge(AWG) |
Construction |
Conductor Outer Diameter |
Insulation Thickness |
Wire O.D |
Max Cond. resistance（Ω/km ,20ºC） |
FT/ROLL |
METER/ROLL |
|

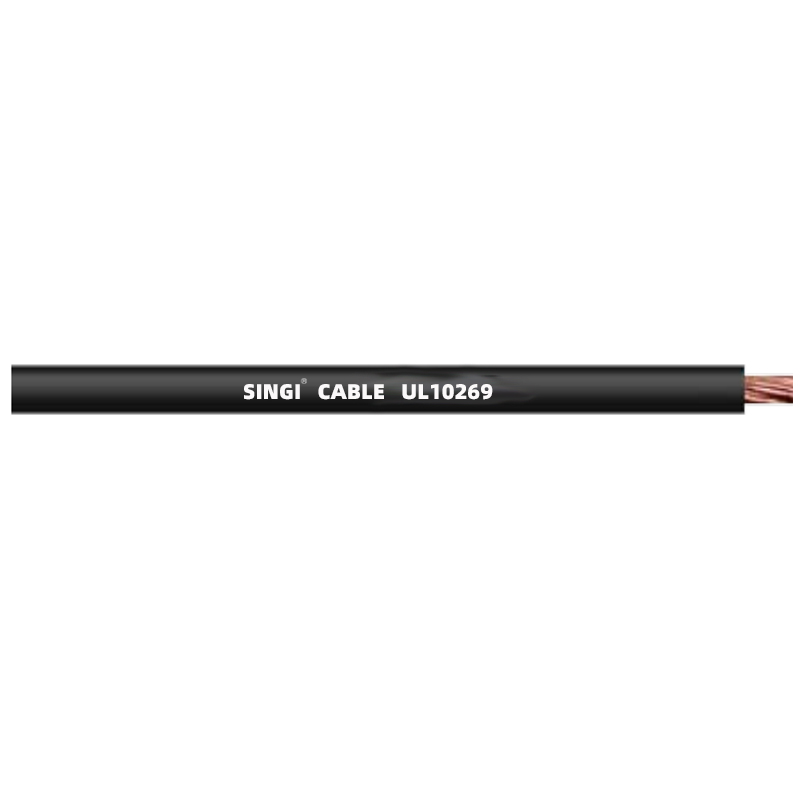

UL10269 |
26 |
7/0.16 |
0.48 |
0.76 |
2.1 |
150 |
2000 |
610 |
|
24 |
11/0.16 |
0.61 |
2.2 |
94.2 |
||||
|
22 |
17/0.16 |
0.76 |
2.4 |
59.4 |
||||
|
20 |
21/0.178 |
0.94 |
2.6 |
36.7 |
||||
|
18 |
63/0.127 |
1.17 |
2.8 |
23.2 |
||||
|
16 |
105/0.127 |
1.49 |
3.1 |
14.6 |
1000 |
305 |
||
|
14 |
168/0.127 |
1.87 |
3.50 |
8.96 |
||||
|
12 |
259/0.127 |
2.36 |
4.10 |
5.64 |
||||
|
10 |
413/0.127 |
3.00 |
4.70 |
3.546 |
||||
|
8 |
658/0.127 |
3.80 |
1.14 |
6.50 |
2.23 |
492 |
150 |
|
|
6 |
1029/0.127 |
4.80 |
1.52 |
8.40 |
1.403 |
328 |
100 |
|
|
4 |
1638/0.127 |
6.00 |
9.50 |
0.882 |
||||
|
2 |
2604/0.127 |
7.70 |
11.50 |
0.5548 |
/ |
REEL |
||
|
1 |
3283/0.127 |
8.50 |
2.03 |
13.90 |
0.4398 |
|||
|
1/0 |
4137/0.127 |
9.60 |
14.80 |
0.3487 |
||||
|
2/0 |
5225/0.127 |
10.80 |
16.00 |
0.2766 |
||||
|
3/0 |
6574/0.127 |
12.20 |
17.50 |
0.2194 |
||||
|
4/0 |
8284/0.127 |
13.80 |
19.50 |
0.1722 |
