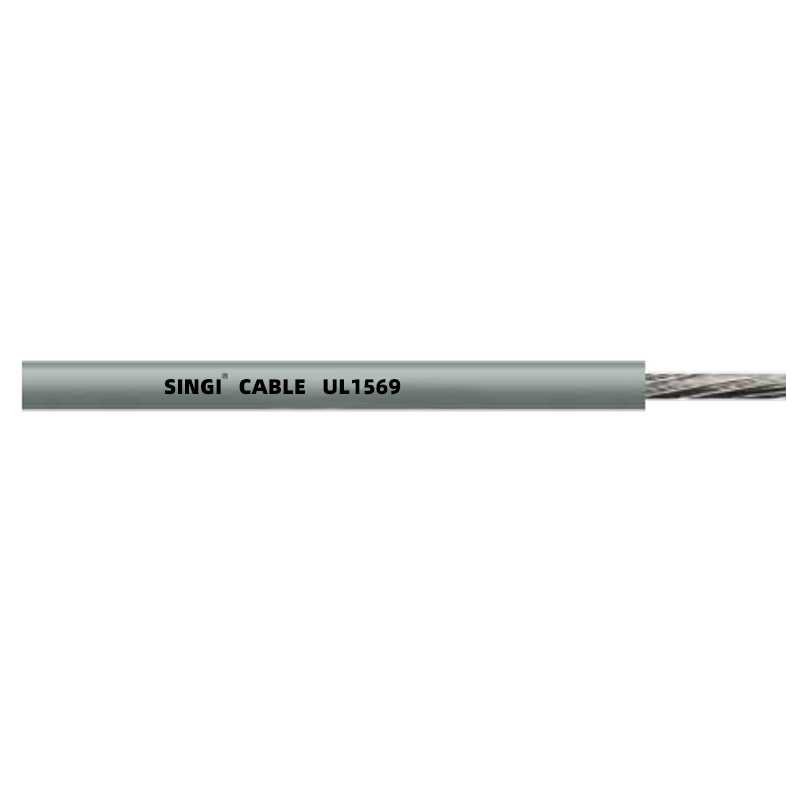

UL1569 Cable

Product Structure

Conductor

Single or stranded bare copper or tinned copper wires comply with UL758&UL1581 and CSA C22.2 NO.210.05 standards

Insulation

Environmental PVC insulation, passed VW-1 flame retardant test

Core  Structure

Layered structure

Application Standards

UL758,UL1581 ,CSA C22.2 No.210.2

Technical parameters

Rated Voltage

300V

Rated Temperature

105℃

Flammability test

Passed UL VW-1, CSA FT1,JQA F-Mark  flame retardant tests

Application scenarios

Suitable for electronic and electrical equipment internal connection lines

Certification

RoHS

UL TYPE

Gauge(AWG)

Construction
(no/mm)

Conductor Outer Diameter(mm)

Insulation Thickness(mm)

Wire O.D(mm)

Max Cond. Resistance（Ω/km ,20ºC）

FT/ROLL

METER/ROLL

UL1569

26

7/0.16

0.48

0.38

1.30

150

2000

610

24

11/0.16

0.61

1.40

94.2

22

17/0.16

0.76

1.60

59.4

20

21/0.178

0.94

1.80

36.7

18

16/0.254

1.17

2.00

23.2

16

26/0.254

1.49

2.35

14.6

14

41/0.254

1.87

2.75

8.96

12

65/0.254

2.36

3.25

5.64

1000

305

10

105/0.254

3.00

3.90

3.546

8

164/0.254

3.80

0.76

5.90

2.23

490

150

6

260/0.254

4.80

6.90

1.403

4

412/0.254

6.00

8.40

0.882

328

100

2

665/0.254

7.70

10.50

0.5548
