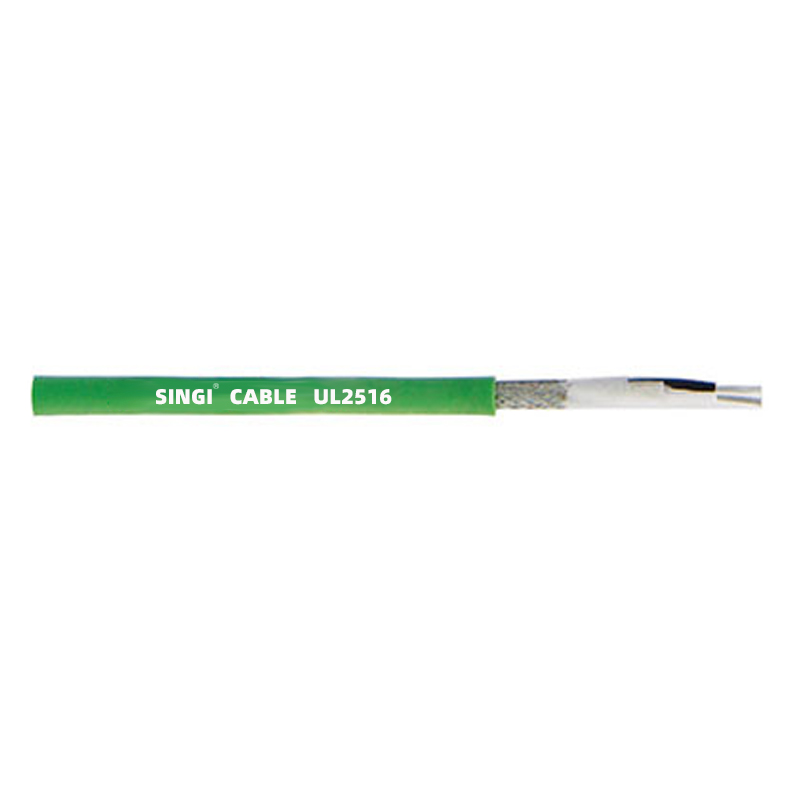

UL2516 Cable

Product Structure

Conductor

Single or stranded bare copper or tinned copper wires comply with UL758&UL1581 and CSA C22.2 NO.210.05 standards

Jacket material

Mixed 105 degree heat resistant flame retardant PVC jacket, passed VW-1 flame retardant test

Core  Structure

Layered structure

Application Standards

UL758,UL1581 ,CSA C22.2 No.210.2

Technical parameters

Rated Voltage

600V

Test Voltage

2000V

Rated Temperature

105℃

Flammability test

Passed UL VW-1, CSA FT1 flame retardant tests

Application scenarios

Suitable for electronic and electrical equipment internal connection lines

Certification

RoHS

Conductor

Insulation

Jacket

MAX.COND. Resistance
(Ω/km,20℃,DC)

AWG

Construction
(No./mm)

DIA.
(mm)

Number

Insulation Thickness
(mm)

O.D.
(mm)

Jacket Thickness
(mm)

O.D.
(mm)

26

7/0.16

0.48

2

0.76

2.1

1.15

6.5

150

3

2.1

6.8

4

2.1

7.4

5

2.1

8.0

24

7/0.20  11/0.16

0.61

2

0.76

2.2

1.15

6.7

94.2

3

2.2

7.0

4

2.2

7.6

5

2.2

8.2

22

17/0.16

0.76

2

0.76

2.4

1.15

7.1

59.4

3

2.4

7.5

4

2.4

8.1

5

2.4

8.8

20

21/0.178   26/0.16

0.94

2

0.76

2.6

1.15

7.5

36.7

3

2.6

7.9

4

2.6

8.6

5

2.6

9.3
