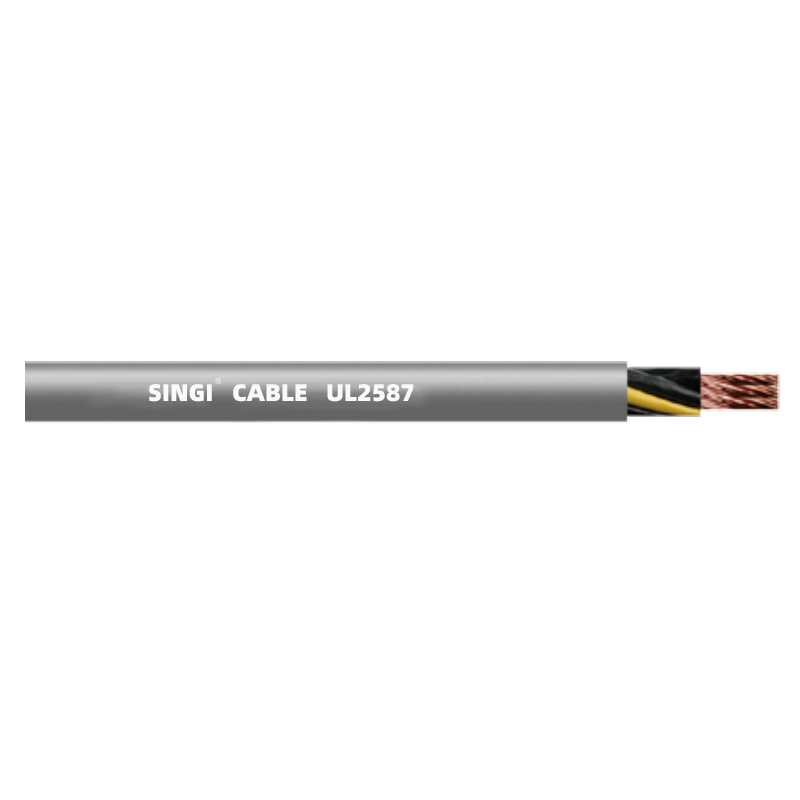

UL2587 Cable

Product Structure

Conductor

Single or stranded bare copper or tinned copper wires comply with UL758&UL1581 and CSA C22.2 NO.210.05 standards

Insulation

Environmental PVC insulation, passed VW-1 flame retardant test

Core  Structure

Layered structure

Shielding layer

Tinned copper braid (optional)

Application Standards

UL758,UL1581 ,CSA C22.2 No.210.05

Technical parameters

Rated Voltage

600V

Rated Temperature

90℃

Flammability test

Passed UL VW-1, CSA FT1 flame retardant tests

Application scenarios

Products are widely used in computers, general electronics, electrical equipment internal connection lines

Certification

RoHS

Conductor

Insulation

Shield

Drain

Braid

Jacket

MAX.COND. Resistance
(Ω/km,20℃,DC)

AWG

Construction
(No./mm)

DIA.
(mm)

Number

Insulation Thickness
(mm)

O.D.
(mm)

Construction

Construction (no/mm)

Construction (mm)

Jacket Thickness
(mm)

O.D.
(mm)

26

7/0.16

0.48

2

0.51

1.6

Al-mylar

7/0.16

0.12

0.76

5.5

150

3

1.6

Al-mylar

0.12

5.7

4

1.6

Al-mylar

0.12

6.2

5

1.6

Al-mylar

0.12

6.6

24

7/0.20  11/0.16

0.61

2

0.51

1.7

Al-mylar

7/0.20

0.12

0.76

5.7

94.2

3

1.7

Al-mylar

0.12

5.9

4

1.7

Al-mylar

0.12

6.4

5

1.7

Al-mylar

0.12

6.9

22

17/0.16

0.76

2

0.51

1.9

Al-mylar

17/0.16

0.12

0.76

6.1

59.4

3

1.9

Al-mylar

0.12

6.4

4

1.9

Al-mylar

0.12

6.9

5

1.9

Al-mylar

0.12

7.4

20

21/0.178   26/0.16

0.94

2

0.51

2.1

Al-mylar

21/0.178

0.12

0.76

6.5

36.7

3

2.1

Al-mylar

0.12

6.8

4

2.1

Al-mylar

0.12

7.4

5

2.1

Al-mylar

0.12

8.0
