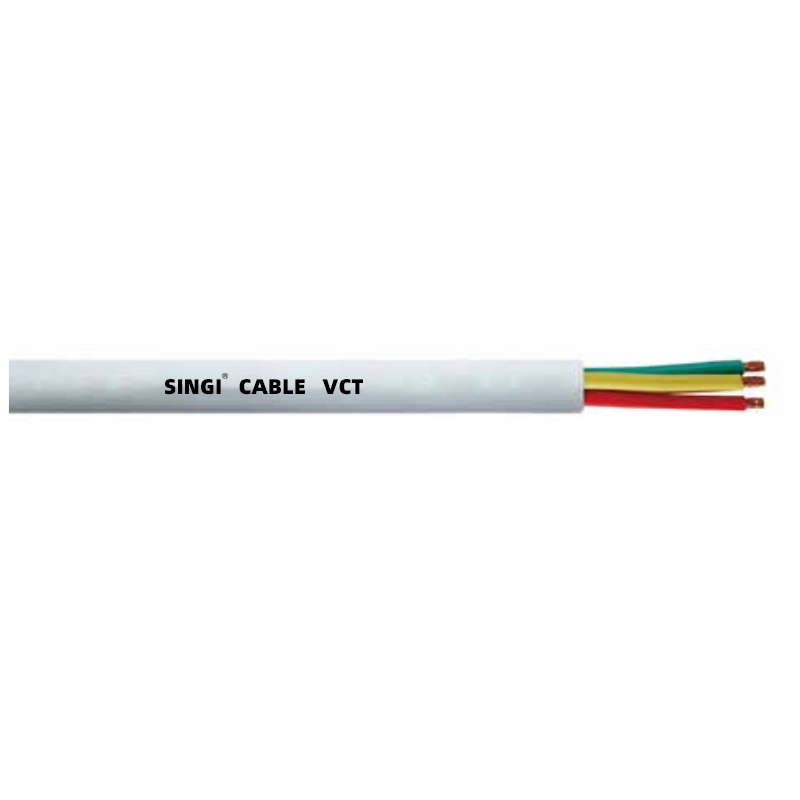

VCT JIS Cable

Product Structure

Conductor

Refer to JIS C3102\JISC 3152

Insulation

Environmental PVC

Core  Structure

Layered structure

Jacket Material

Environmental PVC

Jacket Color

The wire core is identified by color, referring to the JIS C3312-2000 standard

Application Standards

Refer to JIS C3312

Technical parameters

Rated Voltage

600V

Test Voltage

3000V/1min according to JIS C3005

Rated Temperature

60℃

Flame Retardant

Combustion passed JIS_C_3005-2000

Operating Temperature
Fixed Laying：
Mobile Installation：

-30℃~+60℃
-5℃~+60℃

Minimum Bending Radius
Fixed Laying：
Mobile Installation：

4*D
7.5*D

Application Scenario

It is suitable for small indoor appliances and power supply lines of home appliances.

Certification

PSE，RoHS

TYPE

Conductor

Insulation thickness
(mm)

Jacket Thickness
(mm)

Overall  Diameter
(0.1)mm

MAX.COND.  RESISTANCE  （Ω/Km,20℃）

STANDARD  PUT-UP
(M/ROLL)

Size
(mm2)

NO./MM

DIA.
(mm)

VCT

0.75*2C

30/0.18

1.1

0.8

1.7

8.8

25.10

100

1.25*2C

50/0.18

1.5

9.6

15.10

2.0*2C

37/0.26

1.8

1.8

10.4

9.79

3.5*2C

45/0.32

2.5

11.8

5.24

5.5*2C

70/0.32

3.1

1.0

2.0

14.5

3.37

REEL

8.0*2C

50/0.45

3.7

1.2

2.1

16.4

2.39

0.75*3C

30/0.18

1.1

0.8

1.7

9.2

25.10

100

1.25*3C

50/0.18

1.5

10.4

15.10

2.0*3C

37/0.26

1.8

1.8

10.9

9.79

3.5*3C

45/0.32

2.5

12.8

5.24

REEL

5.5*3C

70/0.32

3.1

1.0

2.0

15

3.37

8.0*3C

50/0.45

3.7

1.2

2.2

17.5

2.39
