Product Structure |
|
|
Conductor |
Refer to JIS C3102\JISC 3152 |
|
Insulation |
Environmental PVC |
|
Core Structure |
Layered structure |
|
Jacket Material |
Environmental PVC |
|
Jacket Color |
The wire core is identified by color, referring to the JIS C3306-2000 standard |
|
Application Standards |
Refer to JIS C3306 |
|
Technical parameters |
|
|
Rated Voltage |
300V |
|
Test Voltage |
3000V/1min according to JIS C3005 |
|
Rated Temperature |
60℃ 105℃ |
|
Flame Retardant |
Combustion passed JIS_C_3005-2000 |
|
Operating Temperature |
|
|
Minimum Bending Radius |
|
|
Application Scenario |
It is suitable for small indoor appliances and power supply lines of home appliances. |
|
Certification |
PSE，RoHS |
|
TYPE |
Conductor |
Insulation thickness |
Jacket Thickness |
Overall Diameter |
MAX.COND. RESISTANCE （Ω/Km,20℃） |
STANDARD PUT-UP |
||
|
Size |
NO./MM |
DIA. |
||||||
|

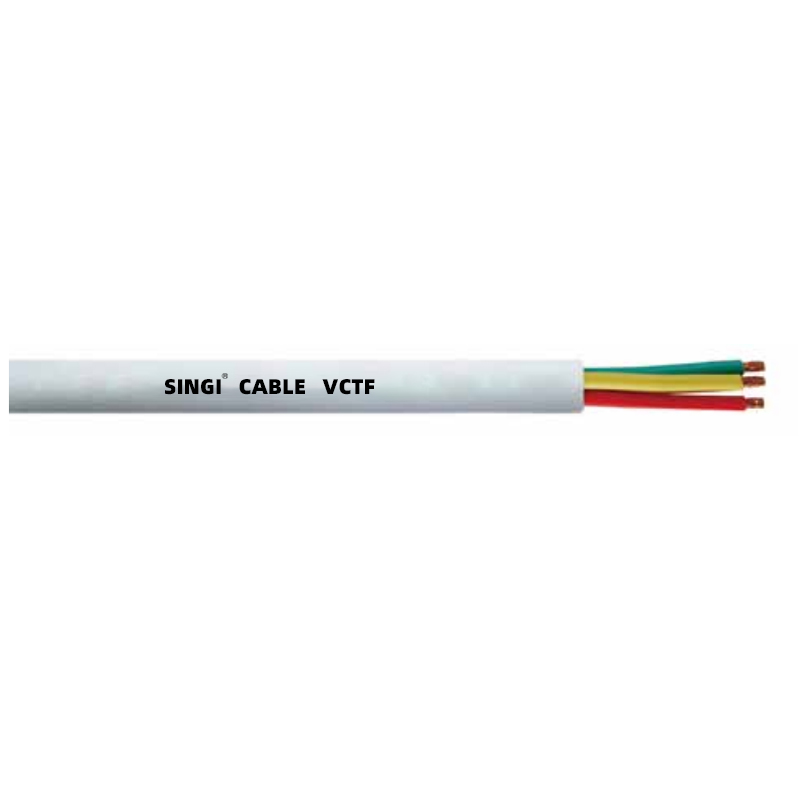

VCTF |
0.75*2C |
30/0.18 |
1.1 |
0.6 |
1 |
6.6 |
25.1 |
150 |
|
1.25*2C |
50/0.18 |
1.5 |
7.4 |
15.1 |
||||
|
2.0*2C |
37/0.26 |
1.8 |
8 |
9.79 |
||||
|
0.75*3C |
30/0.18 |
1.1 |
7 |
25.1 |
||||
|
1.25*3C |
50/0.18 |
1.5 |
7.8 |
15.1 |
||||
|
2.0*3C |
37/0.26 |
1.8 |
8.5 |
9.79 |
||||
|
0.75*4C |
30/0.18 |
1.1 |
7.6 |
25.1 |
||||
|
1.25*4C |
50/0.18 |
1.5 |
8.5 |
15.1 |
||||
|
2.0*4C |
37/0.26 |
1.8 |
9.3 |
9.79 |
||||
